VFT – High pressure tubings

  • MAXIMATOR tubes are manufactured to special requirements and experiences and specifications conforming to high pressure technology.
  • Tubes are made of stainless steel and seamless drawn and subjected to continual inspections. Tubes of other materials can be delivered upon request.

MAXIMATOR High pessure tubes

MAXIMATOR tubes are manufactured to special requirements and experiences and specifications conforming to high pressure technology.
Tubes are made of stainless steel and seamless drawn and subjected to continual inspections. Tubes of other materials can be delivered upon request.
For special applications, e.g. in robots or water-jet technology we provide completely fabricated tube assemblies in all commercially available tube diameters.

Autofrettage

One special service provided by MAXIMATOR is autofrettage of high pressure tubes and tube assemblies to enhance their endurances on our in-house autofrettage machines.
MAXIMATOR supplies autofrettage systems in various configurations for different applications (tubes, pipelines, nozzles, nozzle holders, injectors, rails.)

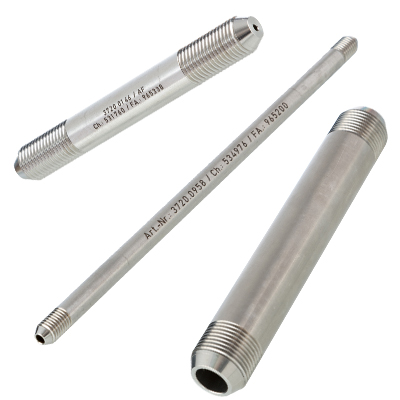

Tube nipples

Prefabricated tube double nipples are available ex-warehouse in the following lengths:

  • 3” (76.2 mm)
  • 4” (101.6 mm)
  • 6” (152.4 mm)
  • 8” (203.2 mm)
  • 10” (254.0 mm)
  • 12” (304.8 mm)

When placing your order, please, just add the requested length in inches or mm after the order number.
For example, 65N6H-4-316 for a tube double nipple with a 6H connection and a length of 101.6 mm.

Connection typeO.D. Tube /inNameP max. /barP max. /psi
12MF3/4"15TU12M-316105015200
12MF3/4"21TU12M-316150021000
16MF1"15TU16M-316105015200
16MF1"21TU16M-316150021000
4HF1/4"65TU4H-316450065000
4HF1/4"65TU4H-304450065000
4MF1/4"21TU4M-304150021000
4MF1/4"21TU4M-316150021000
4UF1/4"101TU4U-HP1607000101000
5UF5/16"152TU5U-31610500152000
5UF5/16"152TU5U-HP16010500152000
6HF3/8"65TU6H-304450065000
6HF3/8"65TU6H-316450065000
6MF3/8"21TU6M-316150021000
6MF3/8"21TU6M-304150021000
6UF3/8"101TU6U-HP1607000101000
9HF9/16"65TU9H-304450065000
9HF9/16"65TU9H-316450065000
9MF9/16"21TU9M-316150021000
9MF9/16"21TU9M-304150021000
9MF9/16"15TU9M-316105015200
9MF9/16"15TU9M-304105015200

P max. = Max. permitted pressure
