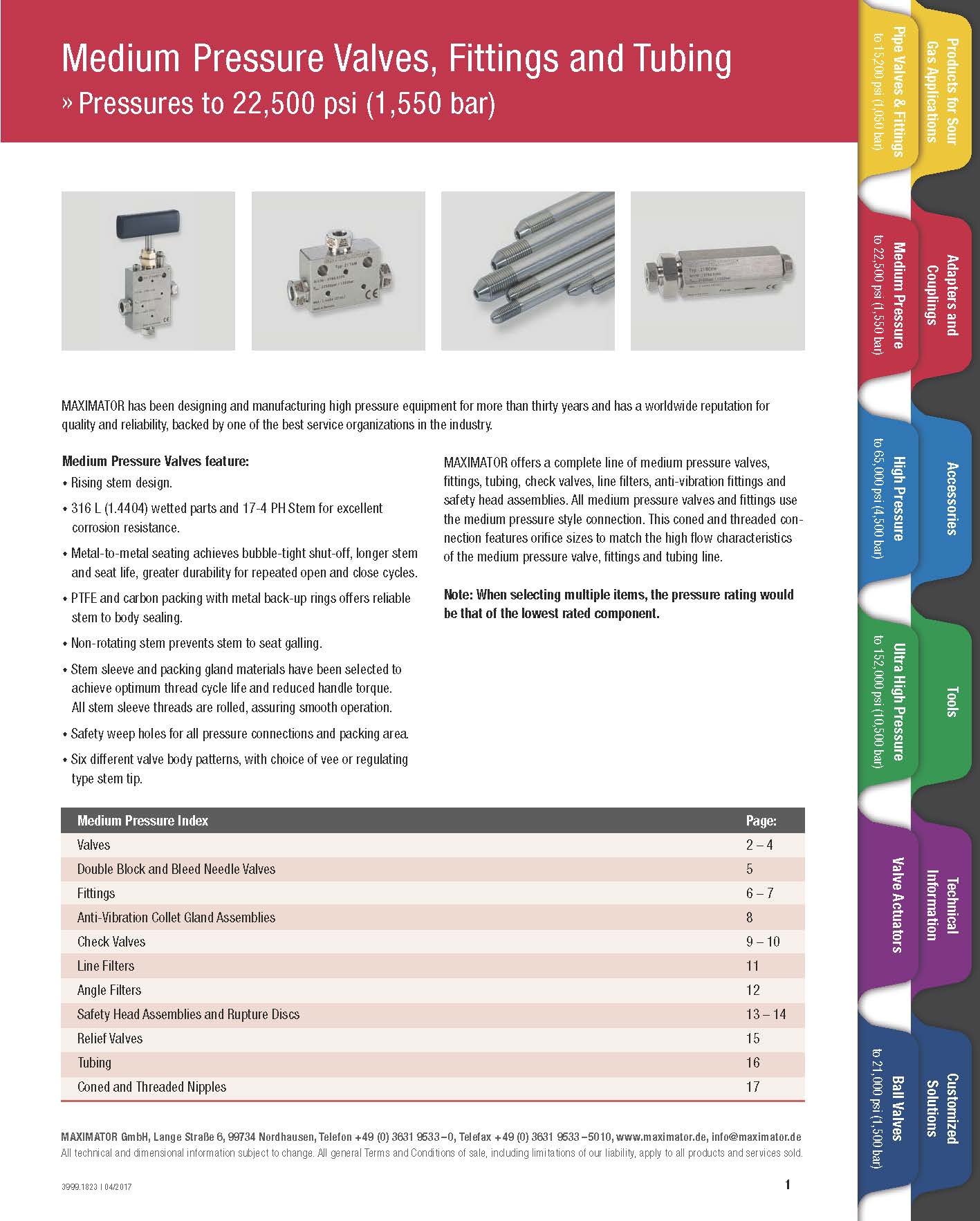

VFT – Fittings 22500 psi
MAXIMATOR fittings and gland assemblies of the 1,550 bar series are designed for simple and safe connection of HP pipes up to a max. pressure of 1,550 bar.
MAXIMATOR fittings and gland assemblies of the 1,550 bar series are designed for simple and safe connection of HP pipes up to a max. pressure of 1,550 bar.
All gland assemblies are fit for multiple use. Fittings are supplied complete with collars and glands.
Anti-vibration gland assemblies may be used to achieve permanent connections even under extreme mechanical loads.
MAXIMATOR fittings and gland assemblies are compatible with HP systems made by other manufacturers.
Technical data:
| Body material | 316L (1.4404) |
| Collar material | 316L (1.4404) |
| Gland material | 316L (1.4404) |
| Temperature | -50ºC - +350ºC |
| Connection | 4MF, 6MF, 9MF, 12MF, 16MF |
| Type | O.D. Tube in | Name | Orifice mm |
|---|---|---|---|
| Anti-Vibration Complete Assembly 1500 bar | 1/4 | 21AVA4M | |
| 3/8 | 21AVA6M | ||
| 9/16 | 21AVA9M | ||
| 3/4 | 21AVA12M | ||
| 1 | 21AVA16M | ||
| Bulkhead Coupling | 1/4 | 21BF4M | 2,7 |
| 3/8 | 21BF6M | 5,1 | |
| 9/16 | 21BF9M | 7,8 | |
| 3/4 | 21BF12M | 11,1 | |
| 1 | 21BF16M | 14,3 | |
| Collar | 1/4 | MCLXM40 | |
| 1/4 | 21C4M | ||
| 3/8 | 21C6M | ||
| 9/16 | 21C9M | ||
| 3/4 | 21C12M | ||
| 1 | 21C16M | ||
| Collet Body | 1/4 | 21AVB4M | |
| 3/8 | 21AVB6M | ||
| 9/16 | 21AVB9M | ||
| 3/4 | 21AVB12M | ||
| 1 | 21AVB16M | ||
| Cross Connector | 1/4 | 21X4M | 2,7 |
| 3/8 | 21X6M | 5,1 | |
| 9/16 | 21X9M | 7,8 | |
| 3/4 | 21X12M | 11,1 | |
| 1 | 21X16M | 14,3 | |
| Elbow-Connector | 1/4 | 21L4M | 2,7 |
| 3/8 | 21L6M | 5,1 | |
| 9/16 | 21L9M | 7,8 | |
| 3/4 | 21L12M | 11,1 | |
| 1 | 21L16M | 14,3 | |
| Gland | 1/4 | 21G4M | |
| 3/8 | 21G6M | ||
| 9/16 | 21G9M | ||
| 3/4 | 21G12M | ||
| 1 | 21G16M | ||
| Gland Nut | 1/4 | 21AVG4M | |
| 3/8 | 21AVG6M | ||
| 9/16 | 21AVG9M | ||
| 3/4 | 21AVG12M | ||
| 1 | 21AVG16M | ||
| Plug | 1/4 | 21P4M | |
| 3/8 | 21P6M | ||
| 9/16 | 21P9M | ||
| 3/4 | 21P12M | ||
| 1 | 21P16M | ||
| Slotted Collet | 1/4 | 21AVC4M | |
| 3/8 | 21AVC6M | ||
| 9/16 | 21AVC9M | ||
| 3/4 | 21AVC12M | ||
| 1 | 21AVC16M | ||
| Straight Coupling | 1/4 | 21F4M | 2,7 |
| 3/8 | 21F6M | 5,1 | |
| 9/16 | 21F9M | 7,8 | |
| 3/4 | 21F12M | 11,1 | |
| 1 | 21F16M | 14,3 | |
| Tee-Connector | 1/4 | 21T4M | 2,7 |
| 3/8 | 21T6M | 5,1 | |
| 9/16 | 21T9M | 7,8 | |
| 3/4 | 21T12M | 11,1 | |
| 1 | 21T16M | 14,3 | |
| Tube Cap | 1/4 | 21TC4M | |
| 3/8 | 21TC6M | ||
| 9/16 | 21TC9M | ||
| 3/4 | 21TC12M | 11,1 | |
| 1 | 21TC16M | 14,3 | |
| Universal Safety Head | 3/4 | 21SH12M | 6 |
| Universal Safety Heads | 1/4 | 21SH4M | 6 |
| 3/8 | 21SH6M | 6 | |
| 9/16 | 21SH9M | 6 |
