High Pressure Pumps – M…-2 series

  • single acting
  • double air drive head
  • Pressures to 4,000 bar (58,000 psi)

MAXIMATOR pumps M series are available as single or double acting with either a single, double or triple air drive head. For air drive pressures from 1 bar (14.5 psi) minimum to 10 bar (145 psi) maximum.

M…-2 pumps

  • single acting
  • double air drive head
  • Pressures to 4,000 bar (58,000 psi)

M…-2 pumps are single acting double air drive head pumps. Compared with the single acting single stage M series they reach double pressure at the same air drive pressure.

M…-2 pumps are available with polyurethane seals. They come standard with bottom inlet, side inlet is available as option.

Options for M series

  • Seal material for oil use (standard pump): Order code: M37 – (L)
  • Special seal material to handle special fluids: Order code: See fluid compatibility guide
  • Side inlet for single acting versions: Order code: M37(L) – S / M37(L)VE – S
  • Special inlet and outlet ports (i. e. NPT): M37 – NPT
  • Air control unit for M series with filter pressure regulator, control pressure gauge and shut-off valve: Order code: M37 with C1
  • To protect the pump against excessive outlet pressures, an air safety valve can be fitted to the air control unit: Order code: M37 with C1/SVair(The outlet pressure has to be indicated.)
  • Other options available on request.
Typei *¹⁾Displ. Vol. ¹⁾
/cm³
Displ. Vol. ¹⁾
/in³
P max. (*)
bar
P max. (*)
psi
Flow
cfm
Flow
l/min
M111-21:2611,000,062500362500,010,35
M189-21:4400,600,044000580000,010,21

i = Pressure ratio
P. max = Discharge
1) Numerical

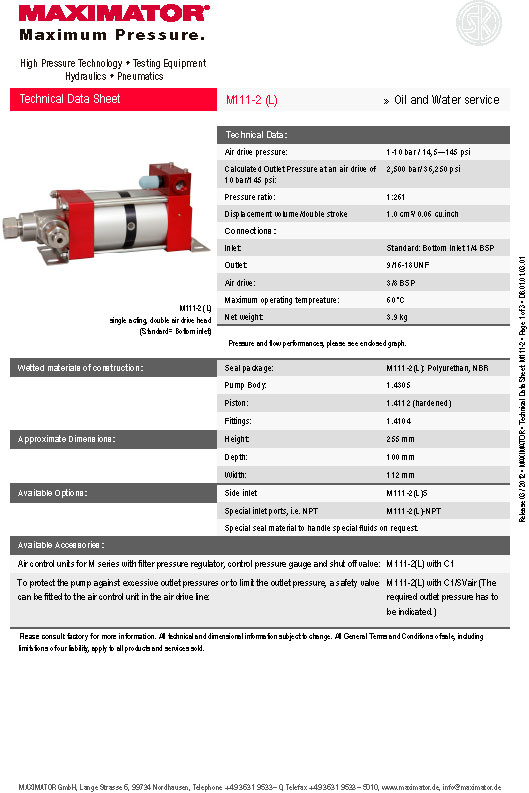

DB 01.01.03.01 Pump M111-2
DB 01.01.03.02 Pump M189-2
