Rental units – LS1600 M189

Maximator Power Packs Liquid can be used for many technical applications in engineering and industry. These units can be operated in Atex Zone 1 and comply with category 2G. They generate hydraulic pressures of up to 4,000 bar safely and very efficiently. They are driven via compressed air ranging from 1 to 10 bar.

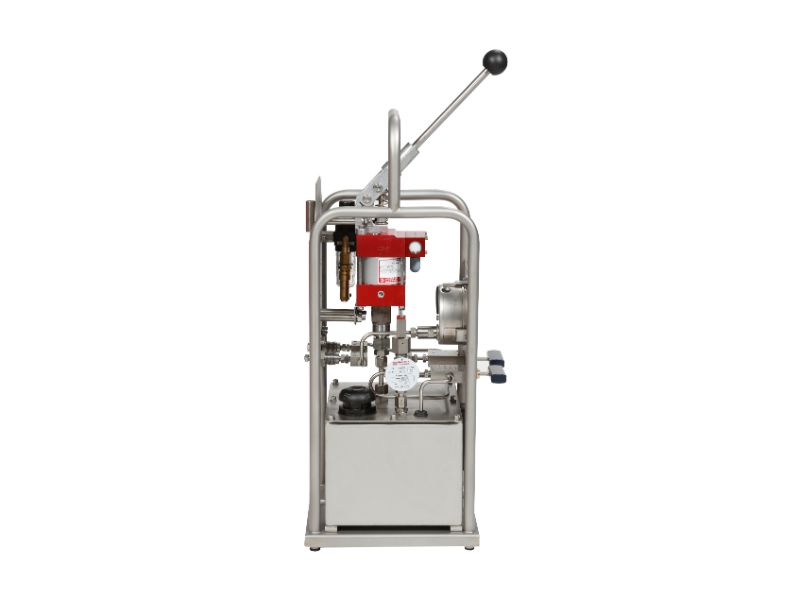

The MAXIMATOR Power Pack Type LS1600 M189 is the ideal solution for mobile pressure generation. Weighing just 20 kg, it can generate up to 1,500 bar – even in hand operation. Accessories include adapters, pressure transducer and rupture disks.

  • Working Pressure up to 1,500 bar
  • 3.1 calibrated gauges and transducers
  • Operating medium water
  • hand operation possible
  • Extensive range of accessories, also prepared for pressure recording
  • Stable flight case for safe transport

Scope of Supply

The MAXIMATOR Power Pack Type LS1600 M189 will be delivered in a compact flight case. The scope of supply comprises the Power Pack LS1600 and the accessorie case.

  • Power Pack LS 1600 M189
  • Accessories
  • Flightcase
  • Stainless steel tray

Accessories

The accessory case for the Maximator Power Pack LS1600 contains various adapters and rupture discs. A pressure transducer together with cable connection is also included and allows digital pressure recording for pressure tests or calibration applications.

  • Pressure Transducer 0-1500 bar, 0-10V *
  • Adapter :
    4M(a)->1/2“(f) BSPP
    4M(a)->FNPT1/2“
    4M(a)->1/4“(f) BSPP
    4M(a)->FNPT1/4″
  • Cable Connection 3000 mm
  • Rupture Discs RD 22000 (4x)

*not to be used in explosion areas

Connections

  • Air Drive Inlet: 1/4“ BSPP
  • Pressure Outlet: 4M (7/16-20 UNF)
  • Measurement Connection:
    4M (7/16-20 UNF)

Technical data

TypeLS1600-M189-01-VE-HL-4H-ATEX
Pressure ratio1:220
Max. working pressure<1500 bar
Operating mediumWater (other options available on request)
Max. flow capacity0,28 l/min
Air drive pressuremin. 1 bar - max. 7 bar
Dimensions w/o case (W x D x H)280 x 350 x 700 mm
Dimensions w. case (W x D x H)620 x 480 x 920 mm
Weight w/o caseapprox. 20 kg
Weight w. caseapprox. 62 kg

Gallery

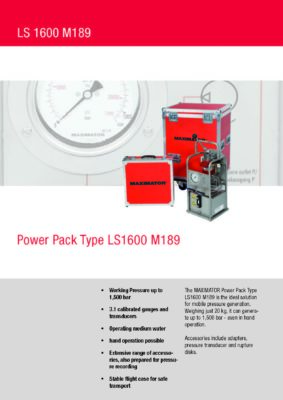

Datasheet LS1600 M189
