Rental units – LM5000 G400

Maximator Power Packs Liquid can be used for many technical applications in engineering and industry. These units can be operated in Atex Zone 1 and comply with category 2G. They generate hydraulic pressures of up to 4,000 bar safely and very efficiently. They are driven via compressed air ranging from 1 to 10 bar.

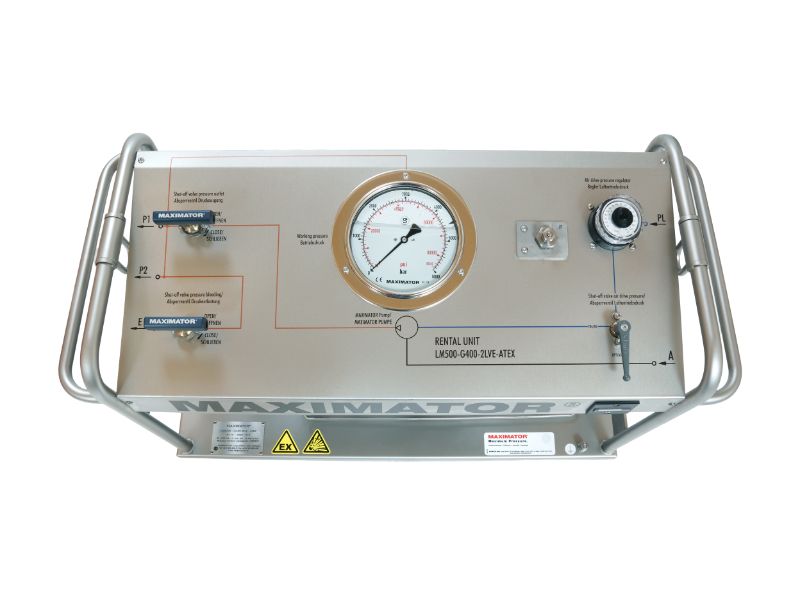

The MAXIMATOR Power Pack Type LM5000 G400 is designed for mobile pressure generation of up to 4,000 bar. Accessories include a 5 litre stainless steel canister, adapters and a pressure transducer.

  • Working pressure up to 4,000 bar
  • 3.1 calibrated gauges and transducers
  • Operating medium water
  • Extensive range of accessories, also prepared for pressure recording
  • Stable flight case for safe transport

Scope of Supply

The MAXIMATOR Power Pack Type LM5000 G400 will be delivered in a compact flight case. The scope of supply comprises the Power Pack LM1600, the accessorie case, a hose and a stainless steel tank.

  • Power Pack LM 5000 G400
  • Accessories
  • Flightcase
  • Stainless Steel Tray
  • Stainless Steel Can 5 L
  • Hose

Accessories

The accessory case for the Maximator Power Pack LM1600 contains various adapters. A pressure transducer together with cable connection is also included and allows digital pressure recording for pressure tests or calibration applications.

  • Druckmessumformer 0-5000 bar, 0-10V *
  • Adapter :
    4H(a)->1/2“(f) BSPP;
    4H(a)->FNPT1/2“;
    4H(a)->1/4“(f) BSPP;
    4H(a)->FNPT1/4“
  • Cable Connection 3000 mm

*not to be used in explosion areas

Connections

  • Air Drive Inlet: 1/2“BSPP
  • Pressure Outlet P1/P2:
    4H (9/16-18 UNF)
  • Measurement Connection:
    4H (9/16-18 UNF)
  • Fluid Inlet: 1/2“(f) BSPP
  • Pressure Release:
    4H (9/16-18 UNF)

Technical data

TypeLM5000-G400-2LVE-ATEX
Pressure ratio1:796
Max. working pressure<4000 bar
Operating mediumWater (other options available on request)
Max. flow capacitydepending on application
Air drive pressuremin. 1 bar - max. 8,5 bar
Dimensions w/o case (W x D x H)910 x 400 x 470 mm
Dimensions w. case (W x D x H)1030 x 620 x 720 mm
Weight w/o caseapprox. 33 kg
Weight w. caseapprox. 91 kg

Gallery

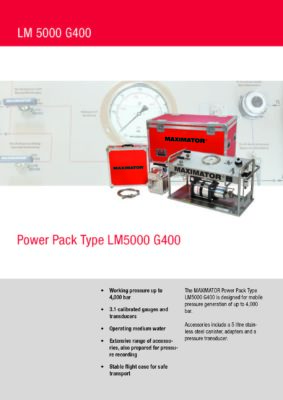

Data sheet LM5000 G400
