Rental units – GM1600 DLE30

Maximator Power Packs Gas are complete, ready-for-connection boster stations for generating operating pressure of up to 2,100 bar. The Power Packs Gas can be used for all types of test, filling and for various pressure generation applications.

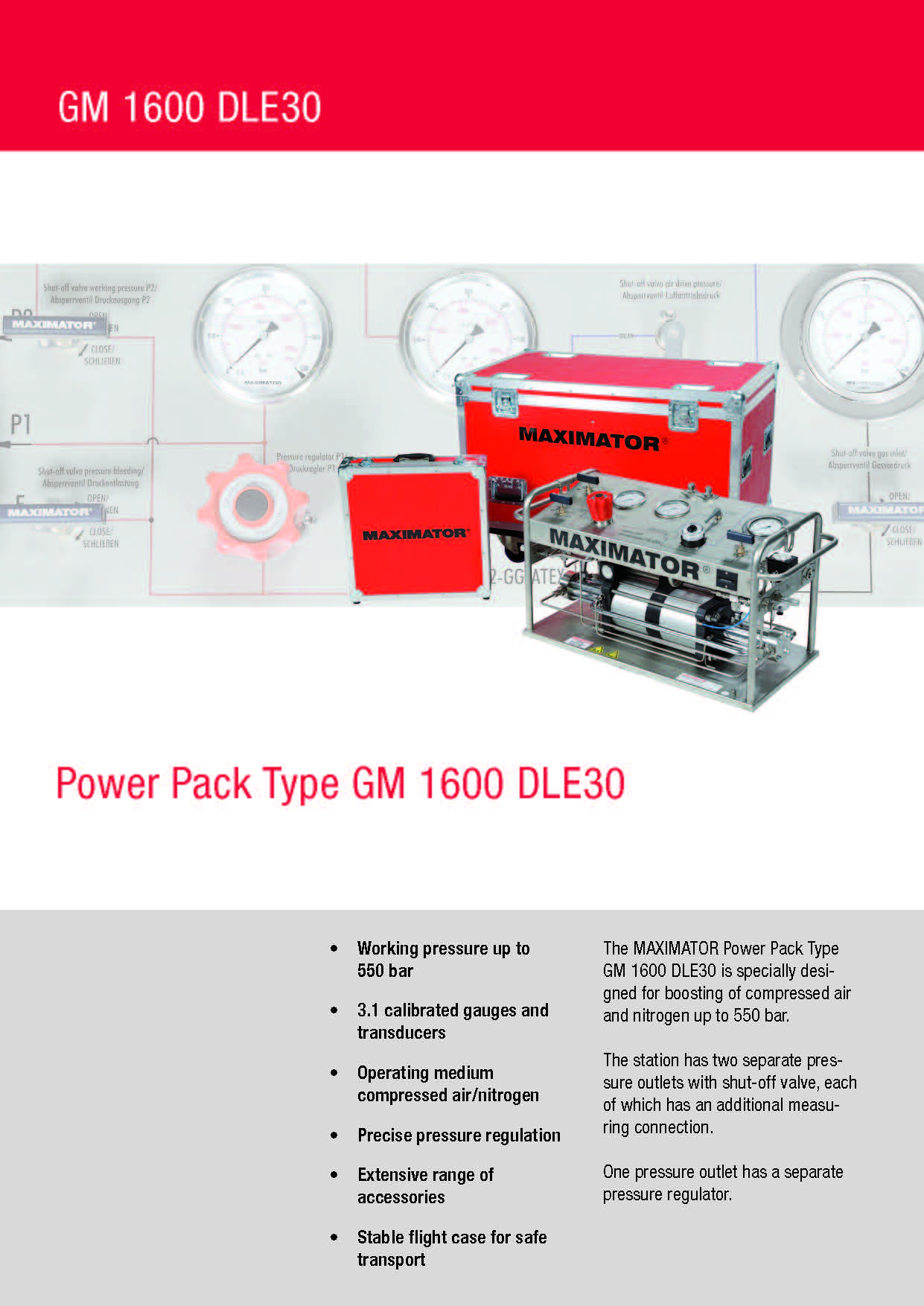

The MAXIMATOR Power Pack Type GM 1600 DLE30 is specially designed for boosting of compressed air and nitrogen up to 550 bar. The station has two separate pressure outlets with shut-off valve, each of which has an additional measuring connection. One pressure outlet has a separate pressure regulator.

  • Working pressure up to 550 bar
  • 3.1 calibrated gauges and transducers
  • Operating medium compressed air/nitrogen
  • Precise pressure regulation
  • Extensive range of accessories
  • Stable flight case for safe transport

Scope of Supply

The MAXIMATOR Power Pack Type GM 1600 DLE30 will be delivered in a compact flight case. The scope of supply comprises the Power Pack GM 1600 and the accessorie case.

  • Power Pack Type GM 1600 DLE30
  • Accessories
  • Flightcase

Accessories

The accessory case for the Maximator Power Pack GM 1600 contains adapter. A pressure transducer together with cable connection is also included and allows digital pressure recording for pressure tests or calibration applications.

  • Pressure Transducer 0-600 bar 0-10V *
  • Cable Connection 3000 mm
  • Adapter GE1/4“ -> 8S
  • Plug 8S

*not to be used in explosion areas

Connections

  • Air Drive Inlet: G 1/2“
  • Pressure Outlet P1/P2: M16x1,5 (8S)
  • Gas Inlet: M16x1,5 (8S)
  • Pressure Release: M16x1,5 (8S)
  • Flushing Connection: G 1/4“

Technical data

TypeGM1600-DLE30-2-GG-ATEX
Pressure ratio1:60
Working pressure P1 adjustable14 - 550 bar
Working pressure P2 non-adjustablemax. 550 bar
Operating mediumCompressed air / Nitrogen (other options available on request)
Max. flow capacitydepending on application
Air drive pressuremin. 1 bar - max. 10 bar
Dimensions w/o case (W x D x H)910 x 410 x 530 mm
Dimensions w. case (W x D x H)1030 x 620 x 720 mm
Weight w/o caseapprox. 61,5 kg
Weight w. caseapprox. 111 kg

Gallery

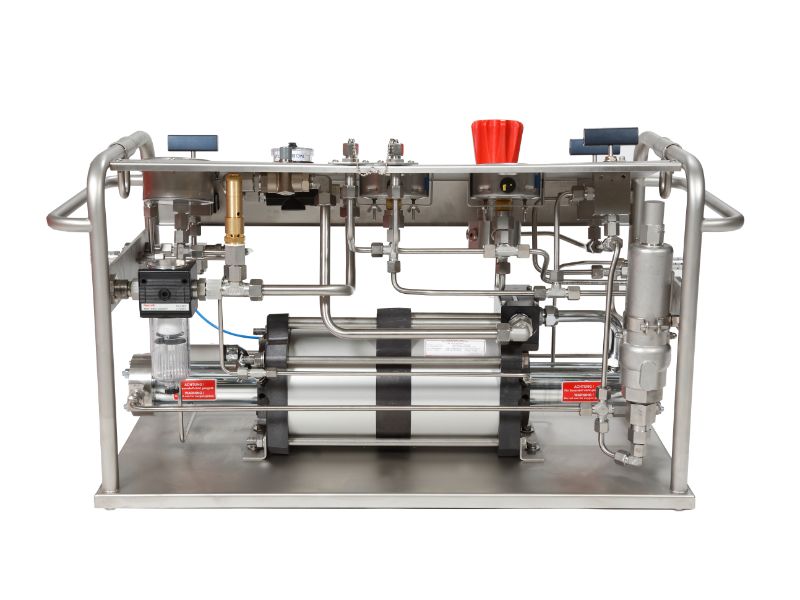

GM1600 DLE30
